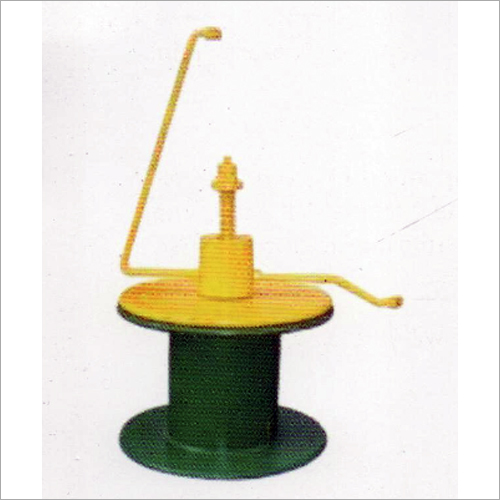

Wire Pay Off RBD Machine
50000.00 - 250000.00 INR
Product Details:
- Function Pay Off for Rod Breakdown Drawing Machine
- Wire Material Copper/Aluminum Wire
- Application Wire Drawing and De-Coiling
- Power 7.5 kW
- Manufacturing Year 2024
- Drawing Material Copper, Aluminium
- Product Type Wire Pay Off RBD Machine
- Click to View more
X
Wire Pay Off RBD Machine Price And Quantity
- 50000.00 - 250000.00 INR
- 01 Piece
- Less than 78 dB
- 1000 mm
- Continuous and Smooth Pay Off
- AC Frequency Drive
- Centralized Automatic Lubrication
- Vertical and Horizontal Options
- Emergency Stop and Overload Protection
- Heavy Duty Steel Fabricated Frame
- PLC & Touchscreen Optional
- Automatic with Dancer Arm
- Easy to Install and Maintain
Wire Pay Off RBD Machine Product Specifications
- 1500 Kg
- Single
- Up to 2500 Kg/Shift
- 20-25 m/sec
- 220-415 V
- 8 mm Max
- New
- Wire Pay Off RBD Machine
- Copper, Aluminium
- 2024
- 7.5 kW
- Pay Off for Rod Breakdown Drawing Machine
- Copper/Aluminum Wire
- Wire Drawing and De-Coiling
- Less than 78 dB
- 1000 mm
- Continuous and Smooth Pay Off
- AC Frequency Drive
- Centralized Automatic Lubrication
- Vertical and Horizontal Options
- Emergency Stop and Overload Protection
- Heavy Duty Steel Fabricated Frame
- PLC & Touchscreen Optional
- Automatic with Dancer Arm
- Easy to Install and Maintain
Wire Pay Off RBD Machine Trade Information
- Asia
Product Description
Owing to our rich industrial experience and hardworking workforce, we are successfully indulged in the manufacturing of the Wire Pay Off RBD Machine. This is considered to be the most efficient machine for the production of wire and cables with minimum distortion. The utilization of best quality raw materials and latest technology makes this machine highly functional and efficient. It is equipped with motor driver, die holders, and drawing capstans that helps in delivering the flawless product range in compliance with latest international quality standards. Moreover, the impeccable finish and negligible maintenance of this Wire Pay Off RBD Machine makes it highly 1durable at cost-effective prices.
Advanced Control & Automation
This machine features sophisticated automation, including optional PLC and touchscreen integration, providing operators with intuitive and accurate control over wire pay-off processes. The automatic dancer arm ensures precise tension management, resulting in continuous and smooth wire feeding. These advanced control technologies significantly reduce manual intervention and help maintain consistent product quality.
Heavy-Duty, Reliable Structure
Constructed from a robust steel fabricated frame, the machine is designed to withstand rigorous industrial usage. The AC frequency drive system delivers efficient speed control while the centralized automatic lubrication prolongs the life of key mechanical components. These structural elements contribute to reduced downtime, higher operational reliability, and minimal maintenance requirements.
Safety & Noise Reduction
Prioritizing safety, the machine is equipped with emergency stop buttons and overload protection mechanisms, mitigating operational risks. A noise level below 78 dB enhances working conditions, ensuring a more comfortable and compliant factory environment. The easy installation process allows seamless integration into new or existing production lines, making it an accessible upgrade for manufacturers.
FAQs of Wire Pay Off RBD Machine:
Q: How does the automatic tension control with the dancer arm benefit the wire drawing process?
A: The automatic tension control utilizing a dancer arm continuously maintains optimal wire tension during operation. This ensures smooth pay-off, reduces wire breakage, and minimizes manual adjustments, resulting in higher production efficiency and consistent drawing quality.Q: What materials and wire sizes can the Wire Pay Off RBD Machine handle?
A: The machine is designed for copper and aluminium wires, accommodating inlet diameters up to 8 mm. With the ability to de-coil and pay off various wire sizes, it matches the demands of wire drawing applications for both light and heavy gauge wires.Q: When is it advisable to utilize vertical versus horizontal take-up types?
A: The choice between vertical and horizontal take-up depends on the specific plant layout and the downstream equipment configuration. Vertical take-up is often preferred for limited floor space or certain drawing processes, while horizontal take-up suits facilities with ample space and specific coiling requirements.Q: Where can this machine be installed and who supports installation?
A: The Wire Pay Off RBD Machine can be installed in both new and existing wire drawing facilities. Installation is straightforward, and manufacturers or authorized suppliers based in India provide installation support, training, and ongoing maintenance services to ensure optimal performance.Q: What is the typical process for operating the Wire Pay Off RBD Machine?
A: After loading the wire coil onto the de-coiler, operators configure the control panel or optional touchscreen, set desired speed and tension parameters, and initiate the process. The machine then automatically manages wire pay-off, tension, and lubrication, allowing continuous, smooth operation with safety measures in place.Q: Which applications benefit most from this machines features?
A: This machine excels in wire drawing and de-coiling processes for copper or aluminium rod breakdown lines. Its high production capacityup to 2500 kg per shiftand customizable control systems make it ideal for exporters, manufacturers, suppliers, and traders requiring efficient, reliable pay-off solutions.Tell us about your requirement
